Description

AXIOMTEK SBC84822 Small Board Computer All-In-One CAPA Board with Intel® Celeron® M 1.5GHz

The SBC84822, a 3.5” Capa board, supports Socket 478 for Intel® Pentium® M and C-M processors at FSB 400/533MHz, LV Intel® Pentium® M 1.4GHz and ULV Celeron® M processor 600MHz/512K, 1GHz/0K, 1GHz/512K. The board integrates Intel® 915GME or Intel® 910GMLE + ICH6M chipsets that support LVDS + CRT, Gigabit/Fast Ethernet and AC’97 Codec Audio all in one single board. Additionally, it provides you with unique embedded features, such as 2 serial ports (1 x RS-232 and 1 x RS-232/422/485) and 3.5” Capa form factor for various applications in need of a compact size. It can achieve the best stability and reliability that makes your system perform the most endurable operation in any critical environments. The built-in Watchdog Timer has enhanced the system reliability that achieves a unique feature to distinguish itself from other boards. Designed for the professional embedded developers, the Socket 478 embedded board SBC84822 Series is virtually ultimate one-step solution for embedded system applications.

Order/part no.: SBC84822

Version: A2-RC

Config: Intel Celeron M 1.5GHz / Intel 915GM Chipset / Intel 82801FB ICH6M / Realtek Gigabit Ethernet

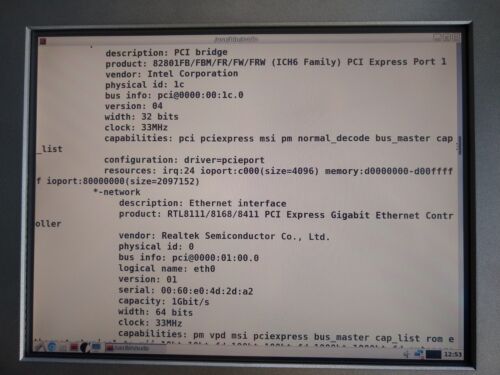

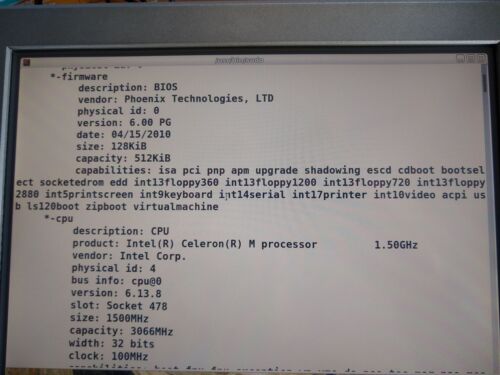

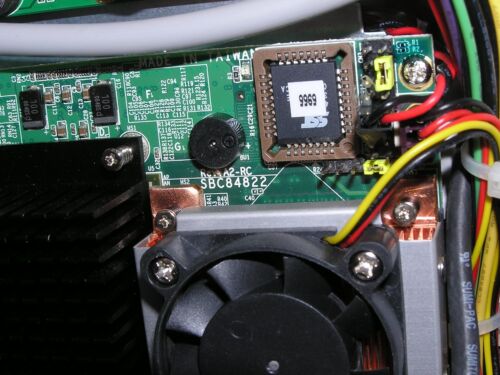

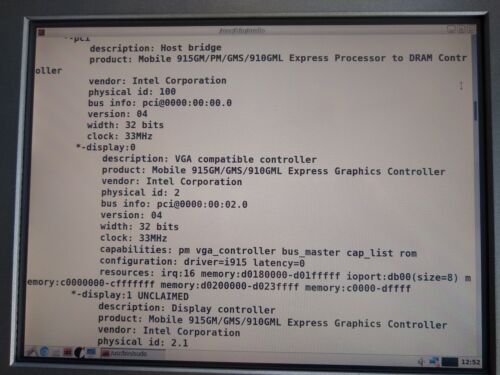

Used in as new condition, tested and working. Comes from unused panel, pictures show SBC still mounted.
