Description

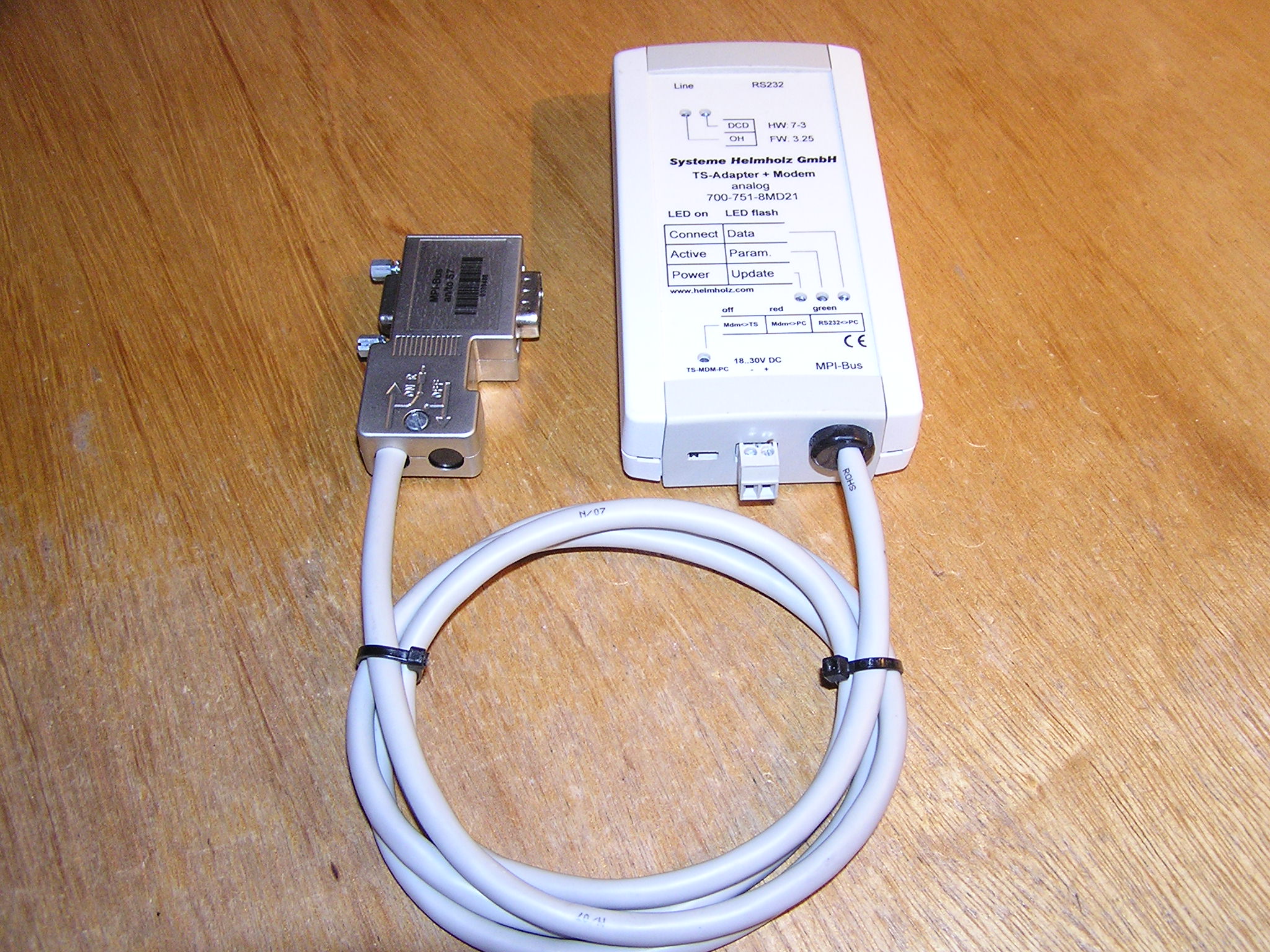

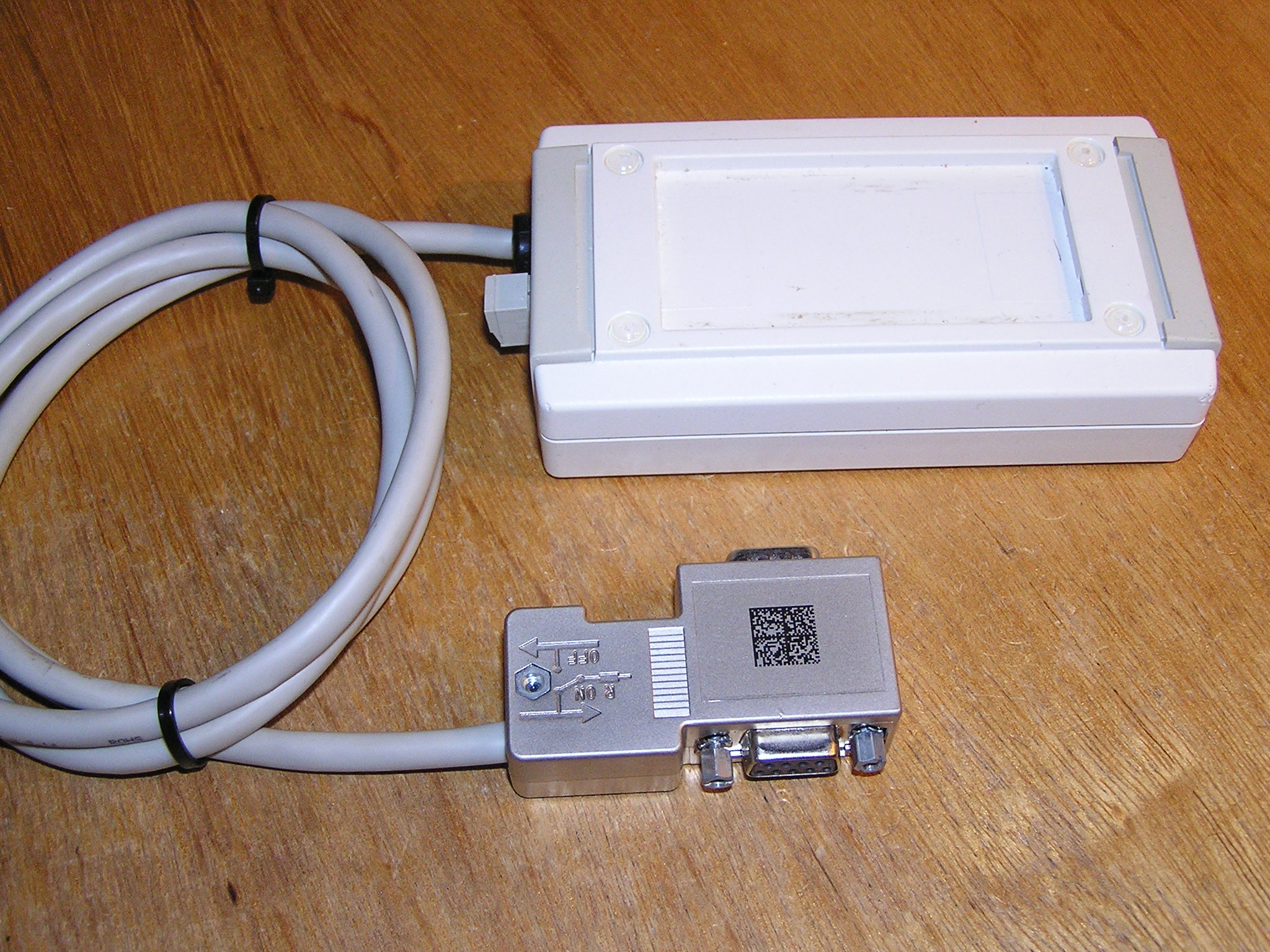

Helmholz SSW7-TS with analog modem

The SSW7-TS with integrated modem is an economical alternative for remote maintenance of an automation device via the MPI bus. Depending on the version, an analog or GSM modem is integrated in the housing of the SSW7-TS. The analog modem can be configured for use worldwide. All connecting cables required for operation are included. For mobile use, or if there is no telephone line, the SSW7-TS with GSM modem (quad band) is the right choice. Using the serial interface, the SSW7-TS with modem can also be used as a PC adapter for on-site use. The respective modem can also be used for remote maintenance of a VISU/SCADA application without the TS adapter function. The SSW7-TS with modem is powered by the CPU via the MPI cable or external voltage connection. The SSW7-TS with modem can be provided with new firmware over a modem connection using the free software SHTools. This means a functional expansion of an adapter already installed in the system is possible. The latest SHTools version is available for download at no charge at our website http://www.helmholz.com.

Order no.: 700-751-8MD21

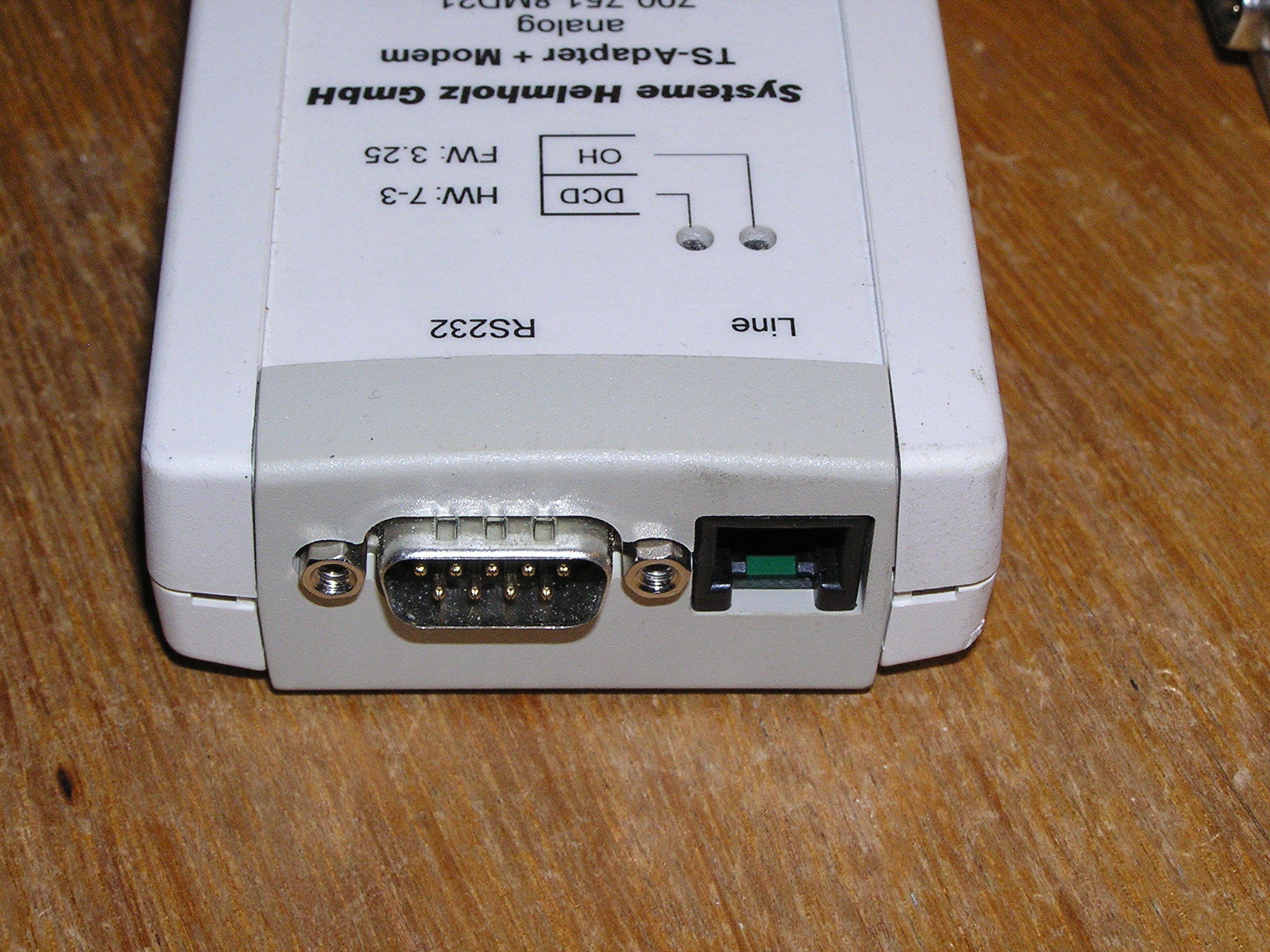

HW version: 7-3

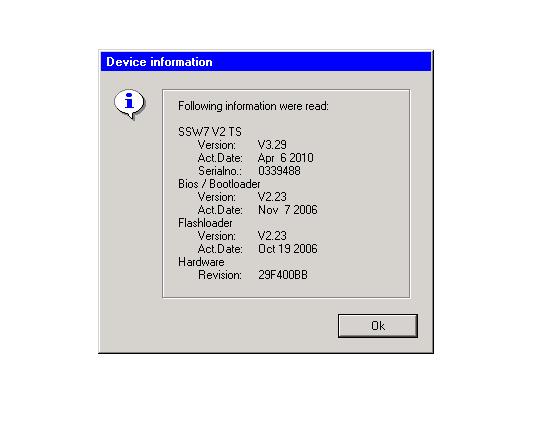

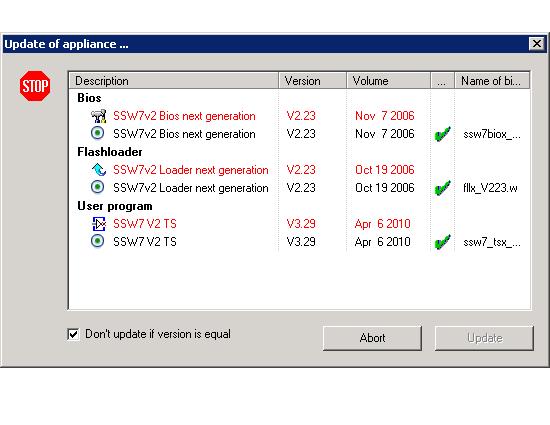

FW version: V3.29 (upgraded from V3.25 to latest version)

Used in excellent condition, tested and working
