Description

Siemens RUGGEDCOM RS900GNC

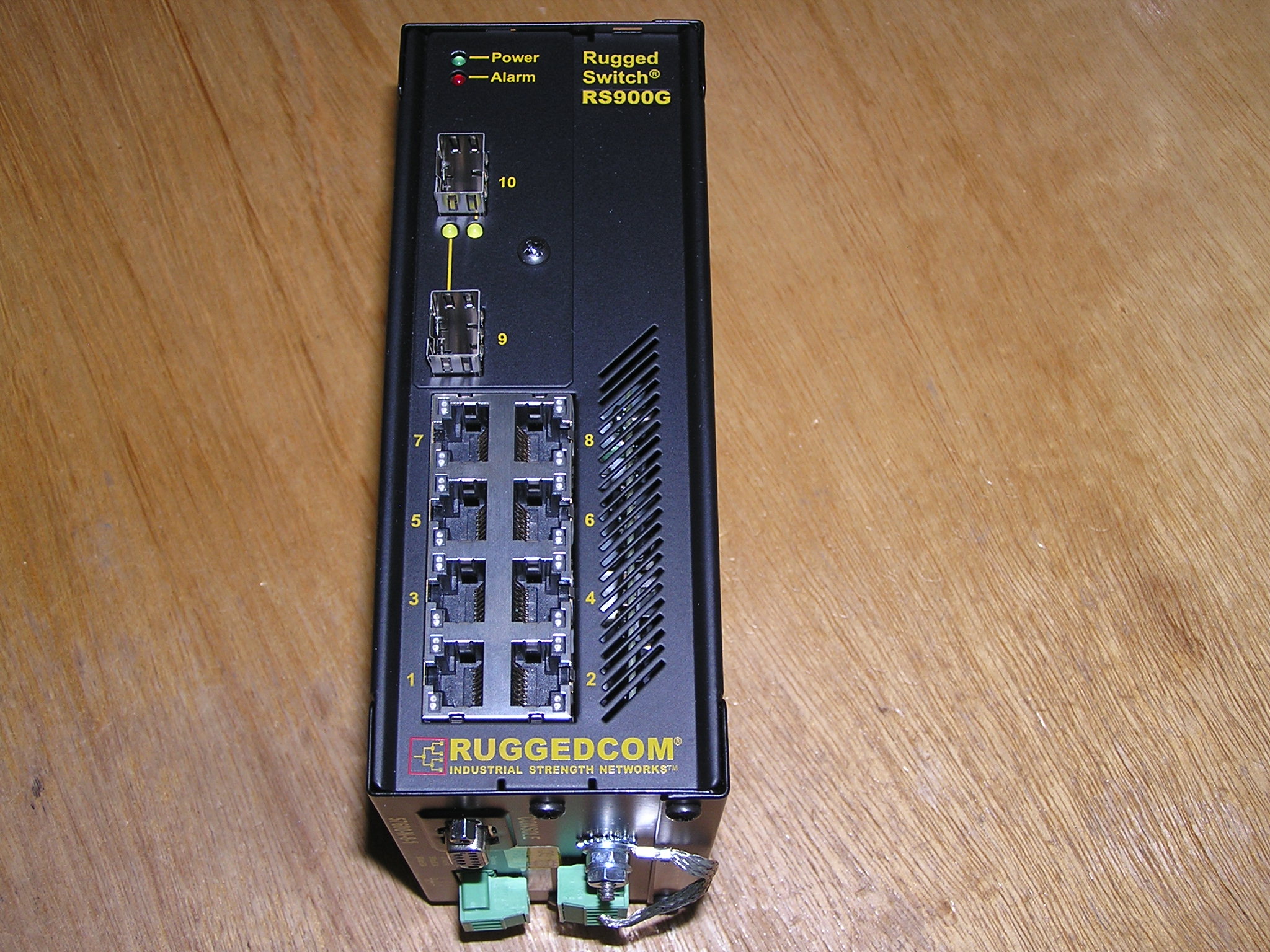

The RUGGEDCOM RS900GNC is an industrially hardened, fully managed Ethernet switch providing dual fiber optical Gigabit Ethernet ports and 8 Fast Ethernet copper ports; 56-bit Encryption; 2 Fiber Optical Gigabit Ethernet Ports (1000BaseX); 8 Fast Ethernet Ports (10/100BaseTX); Multiple fiber connector types (LC, SC, SFP Pluggable Optics); Bi-directional singlestrand fiber support; Long haul optics allow Gigabit distances up to 70km

Siemens order no.: 6GK6090-0GS11-0BA0 / 6GK6 090-0GS11-0BA0

Actual Siemens configuration: 6GK6090-0GS11-0BA0-Z A01

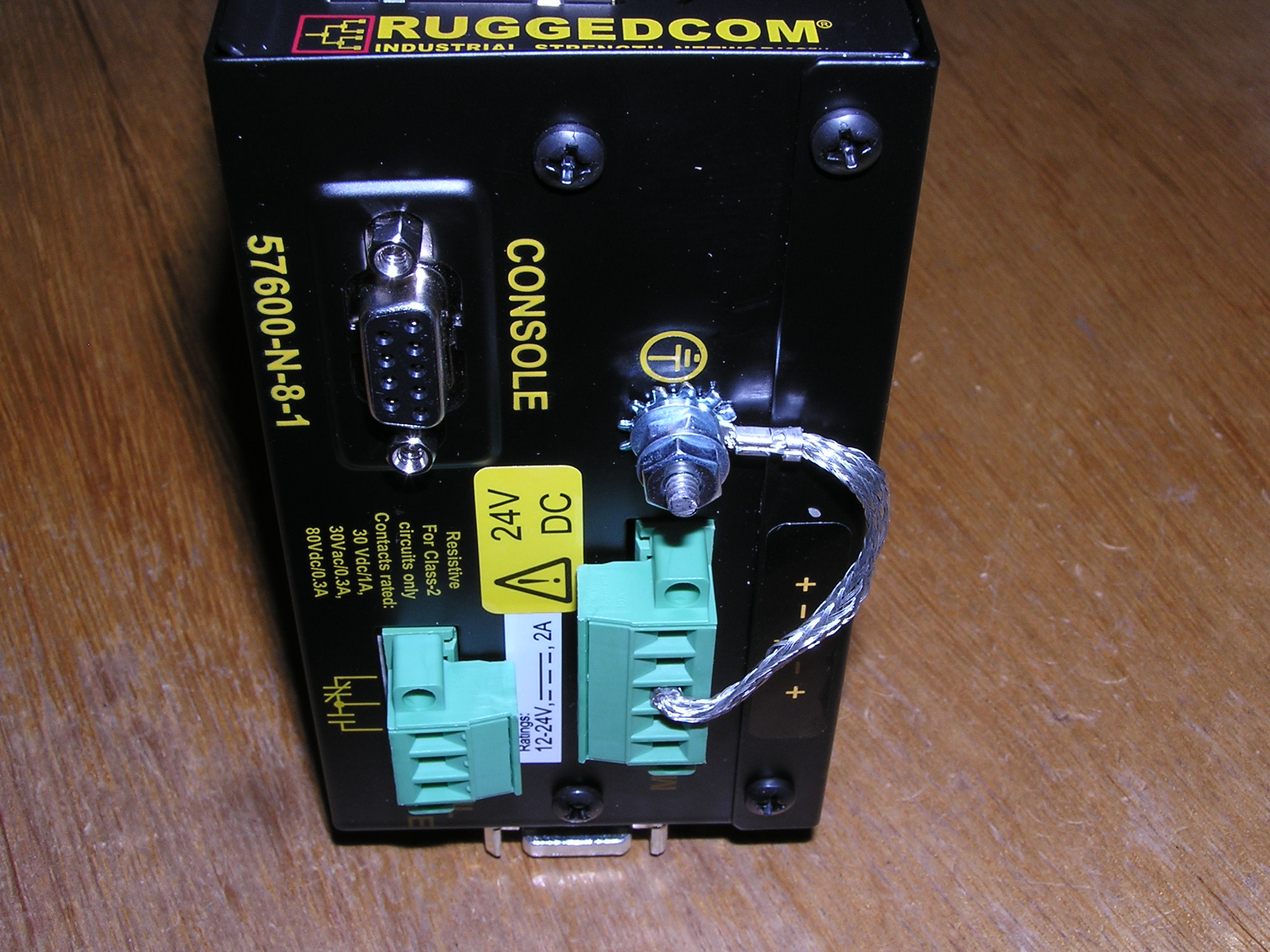

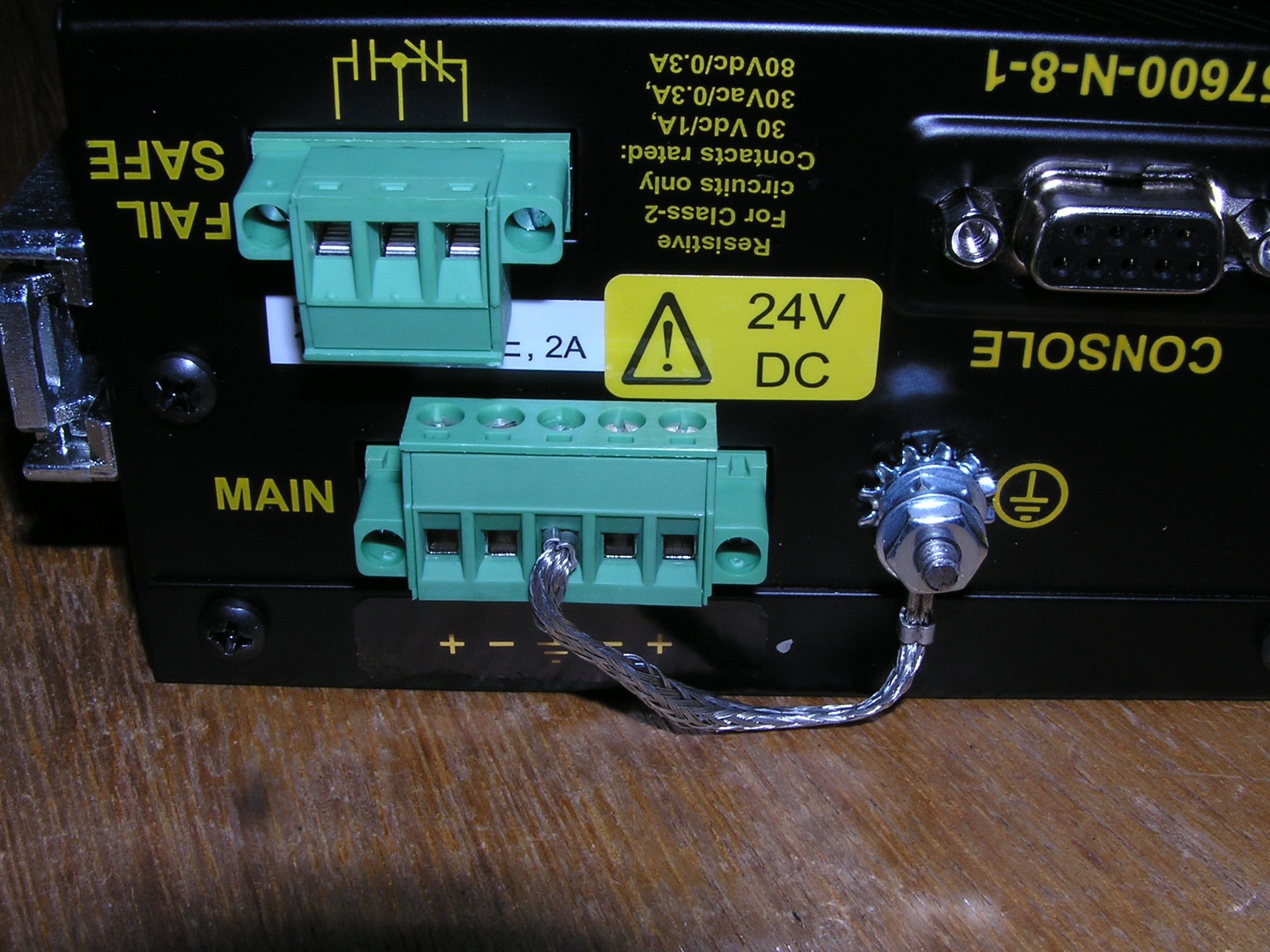

• Power Supply 1       =     24      =  24 VDC (10-36 VDC)
• Power Supply 2       =     XX    =  No power supply 2

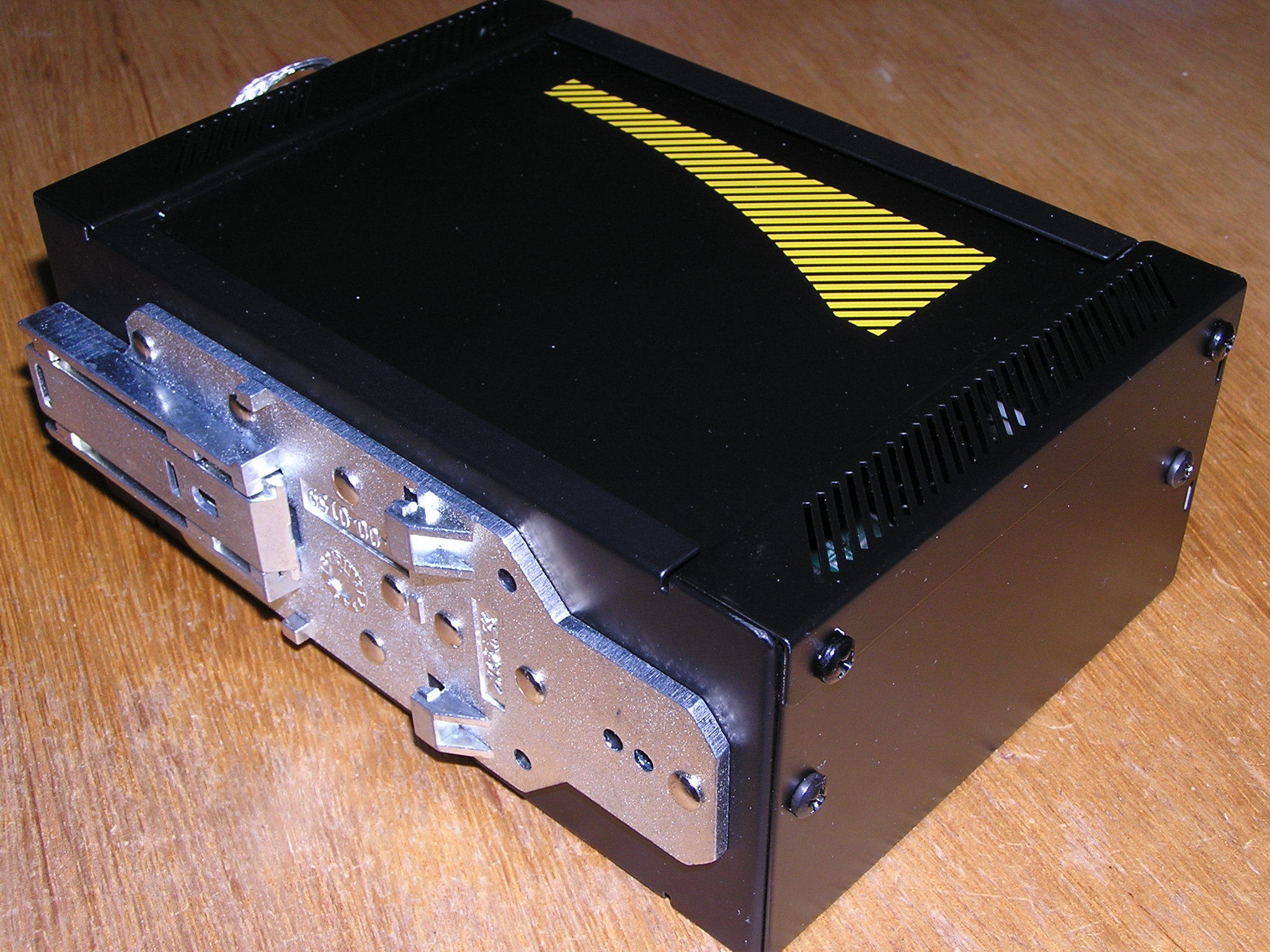

• Mounting Options   =     D       =  DIN Rail Mounting

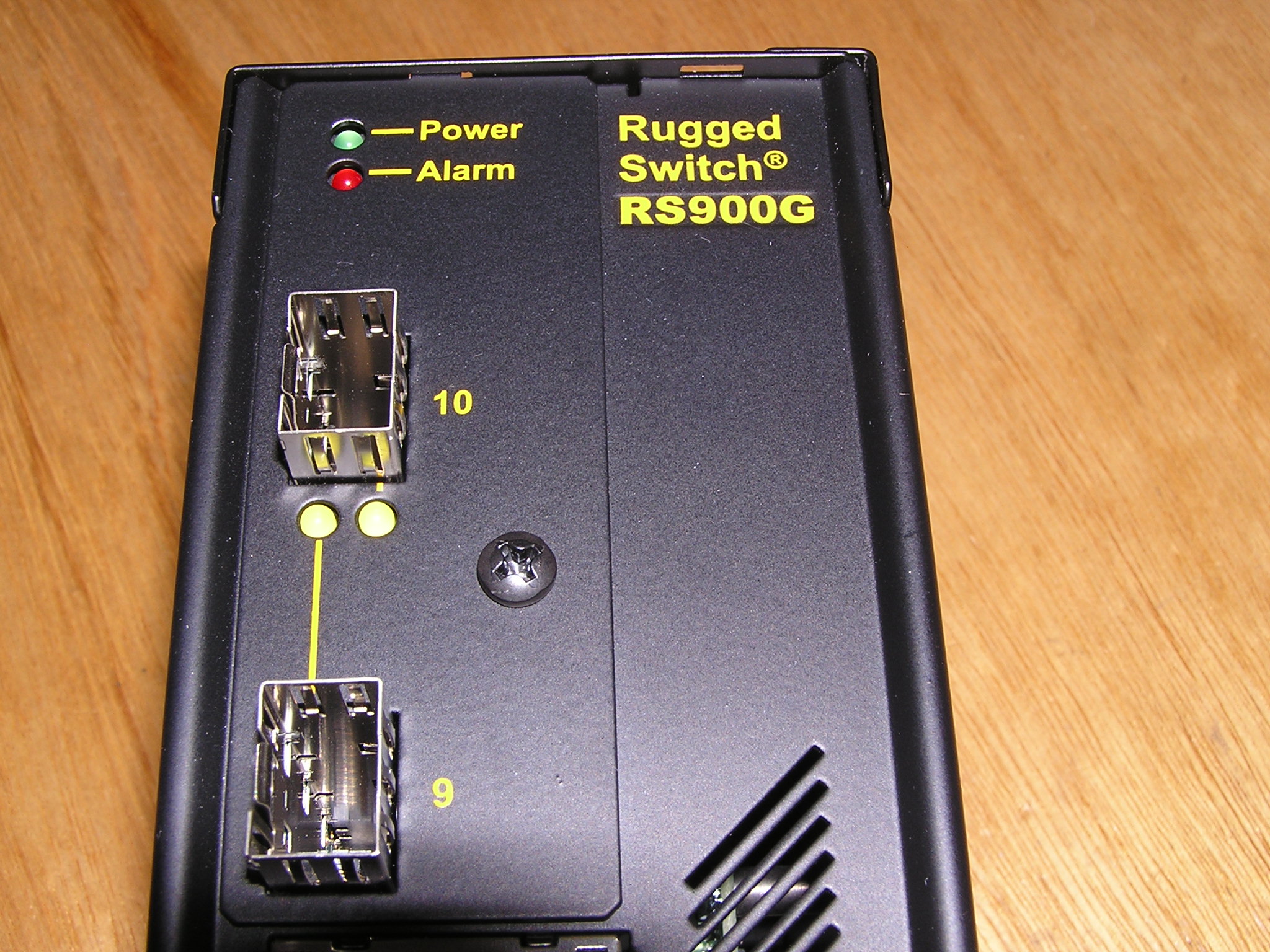

• Port 9 & Port 10      =   2SFP   =  Dual 1000X SFP (Mini-GBIC)

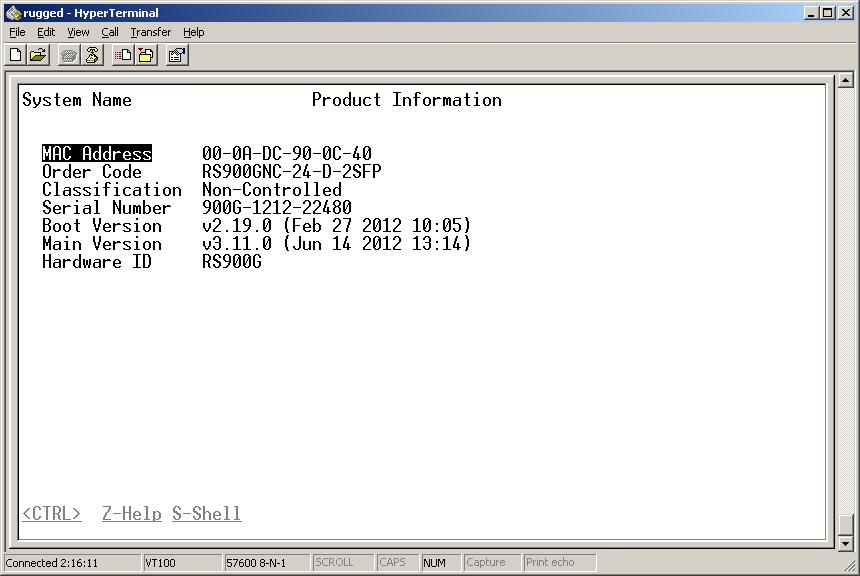

Actual RUGGEDCOM configuration: RS900GNC-24-D-2SFP-XX

Unused without original box, tested and working

RUGGEDCOM was acquired by Siemens in 2012
