Description

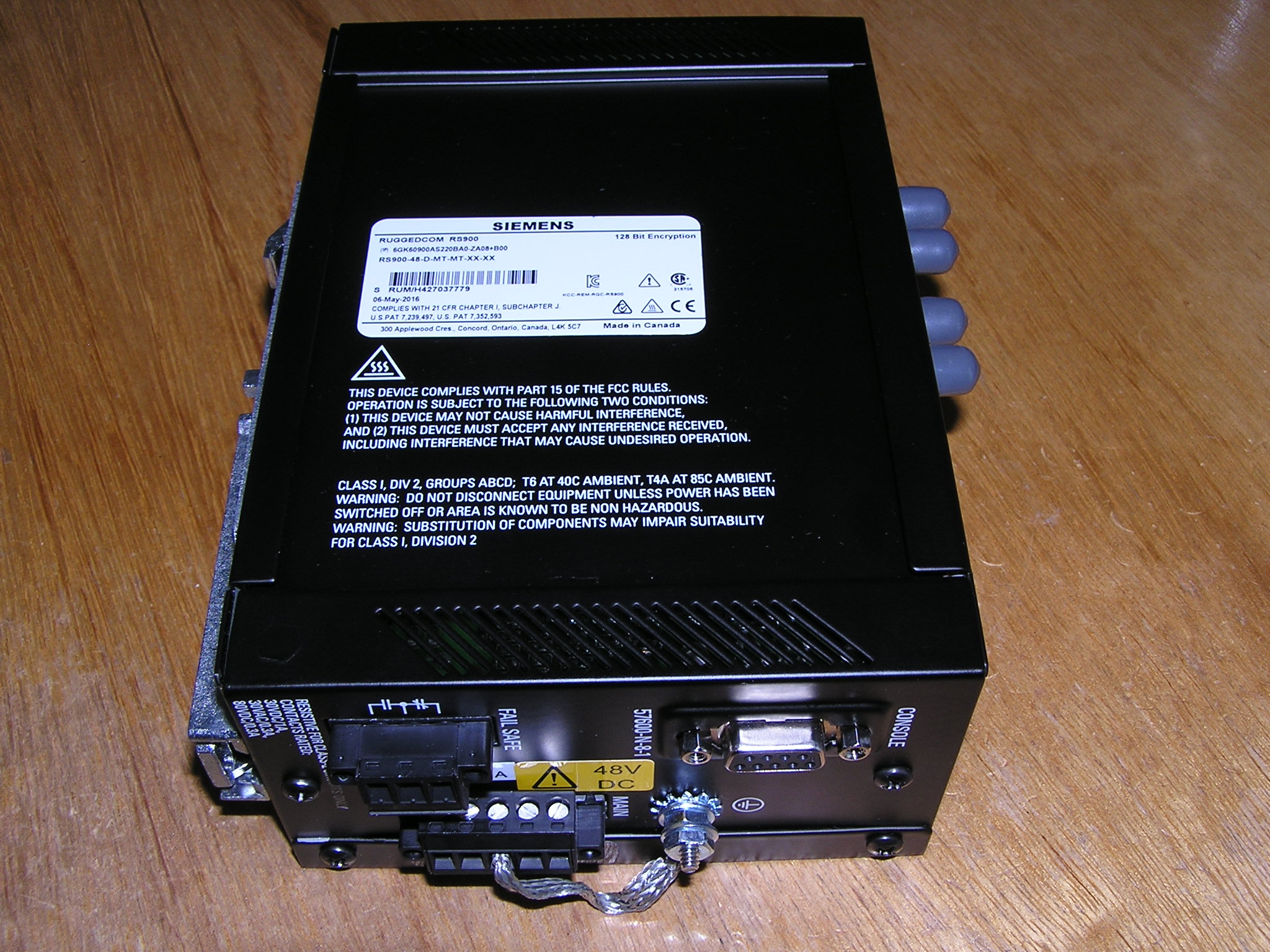

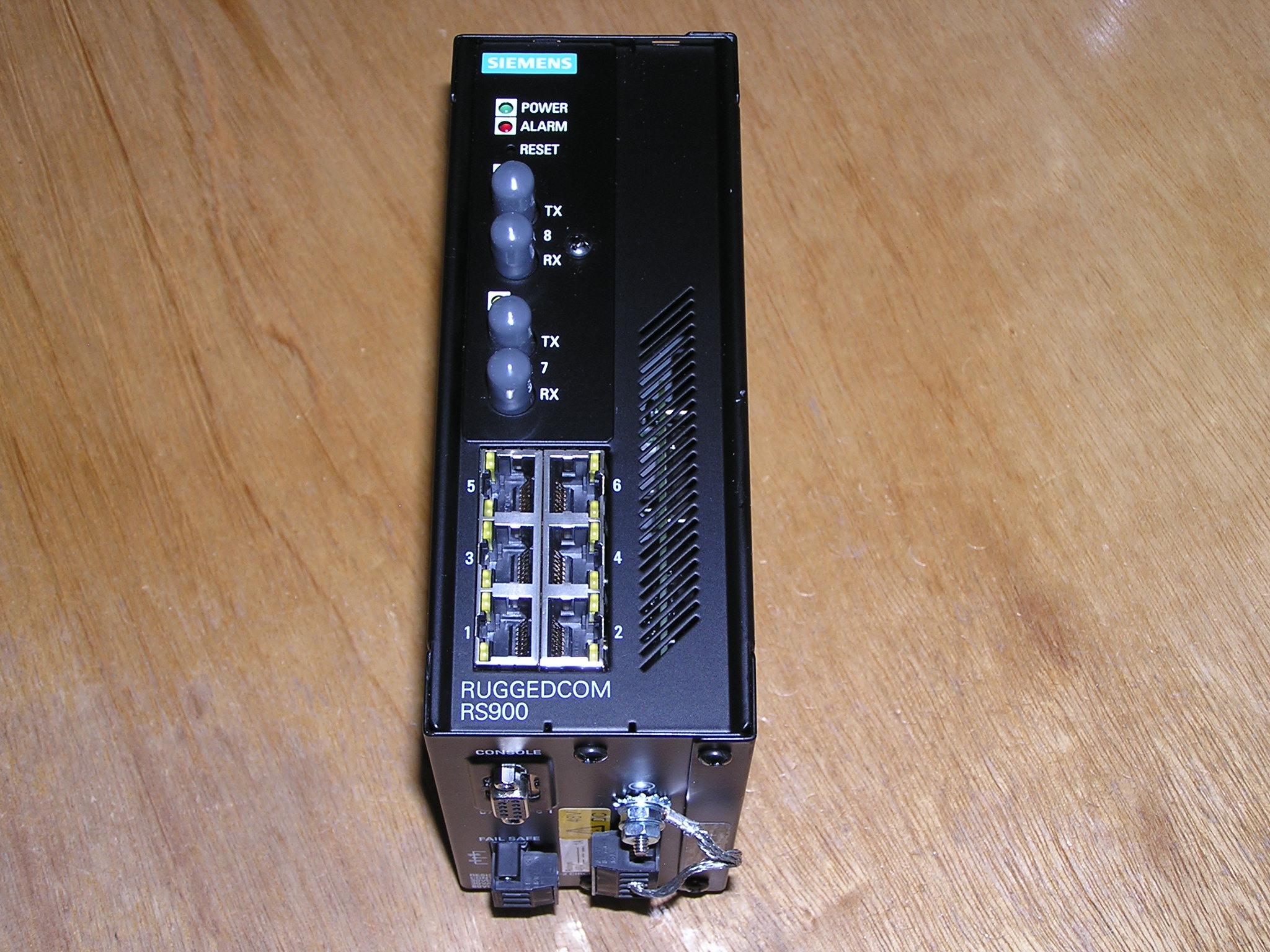

Siemens RUGGEDCOM RS900
RUGGEDCOM RS900 is a 9-port industrially hardened, fully managed Ethernet switch; 128-bit Encryption; Up to 9 Ports: 6 Base 10/100Bas ports with option for 3 additio Fiber or Copper ports Industry standard fiber optical connectors: LC, SC, ST, MTRJ Multimode and Singlemode optical transceivers
Order no.: 6GK6090-0AS22-0BA0 / 6GK6090-0AS22-0BA0

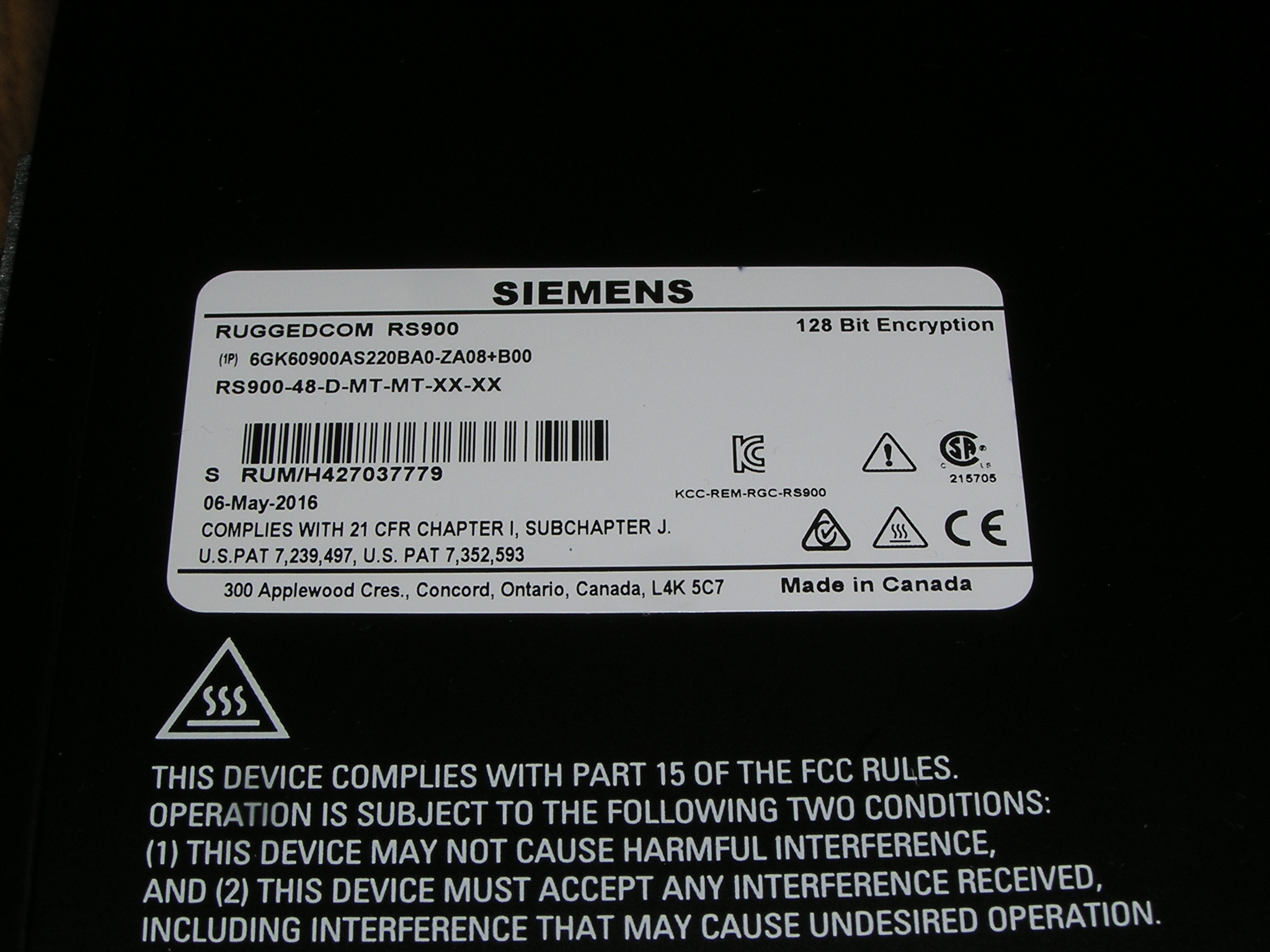

Actual Siemens configuration: 6GK6090-0AS22-0BA0-Z A08+B00

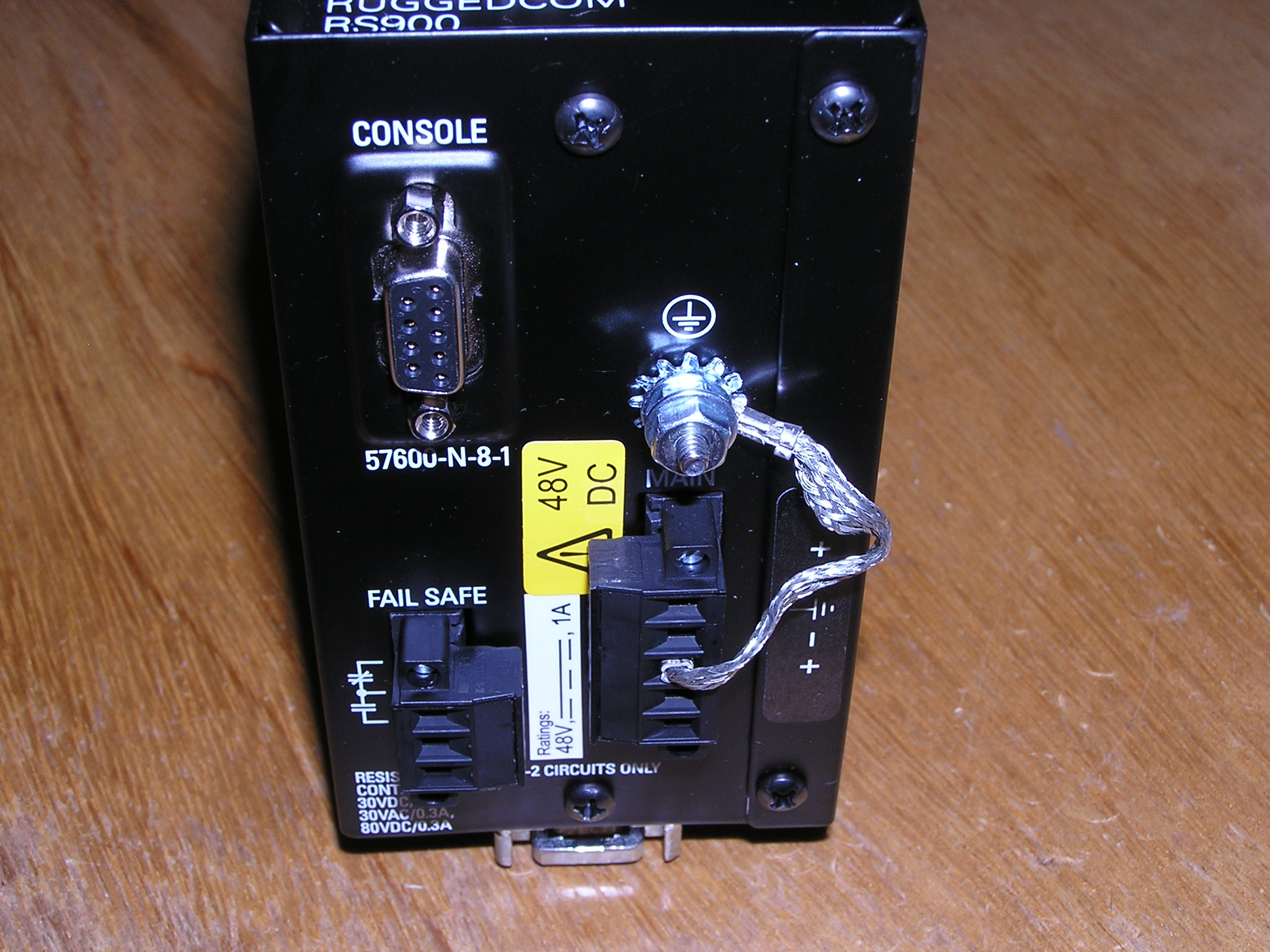

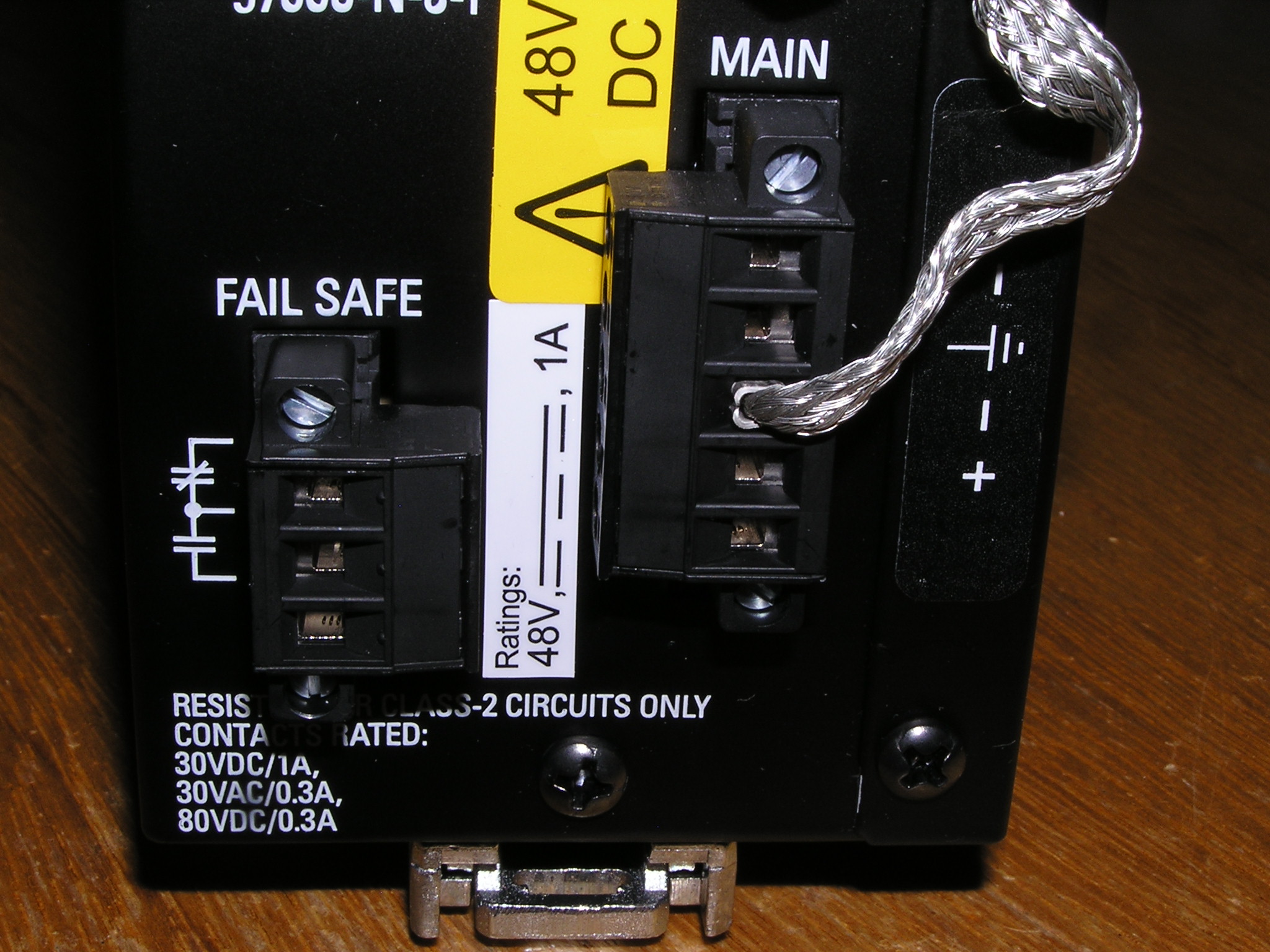

- Power Supply 1 = 48 = 48 VDC (36-72 VDC)
- Power Supply 2 = XX = No power supply 2
- Mounting Options = D = DIN Rail Mounting

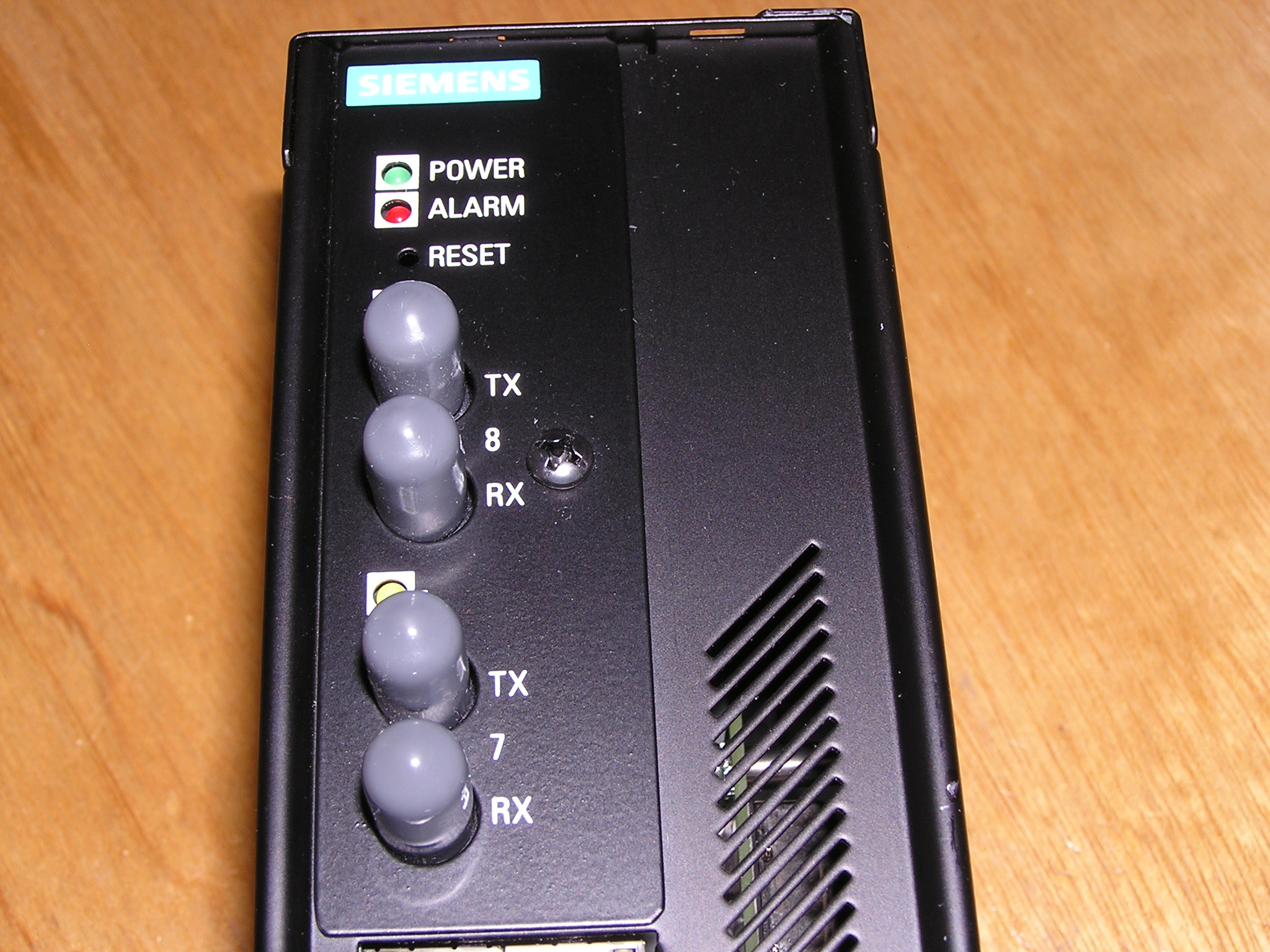

- Port 7 & Port 8 = MT-MT = 2 x 100FX – Multimode 1300nm, ST
- Port 9 = XX = None
