Name: Unused - GEMÜ 88580138 Victoria D481 125W032D4VV3 BU13AC0 Valve w/o original box
Brand: GEMÜ
SKU: ART09882
Availability: InStock

Unused – GEMÜ 88580138 Victoria D481 125W032D4VV3 BU13AC0 Valve w/o original box

€495,00 excl. VAT

Unused without original box, with ADA0130 U F05F07YS17/S14A Actuator

1 in stock

SKU: ART09882

Category: Valves

Brands: GEMÜ

Description

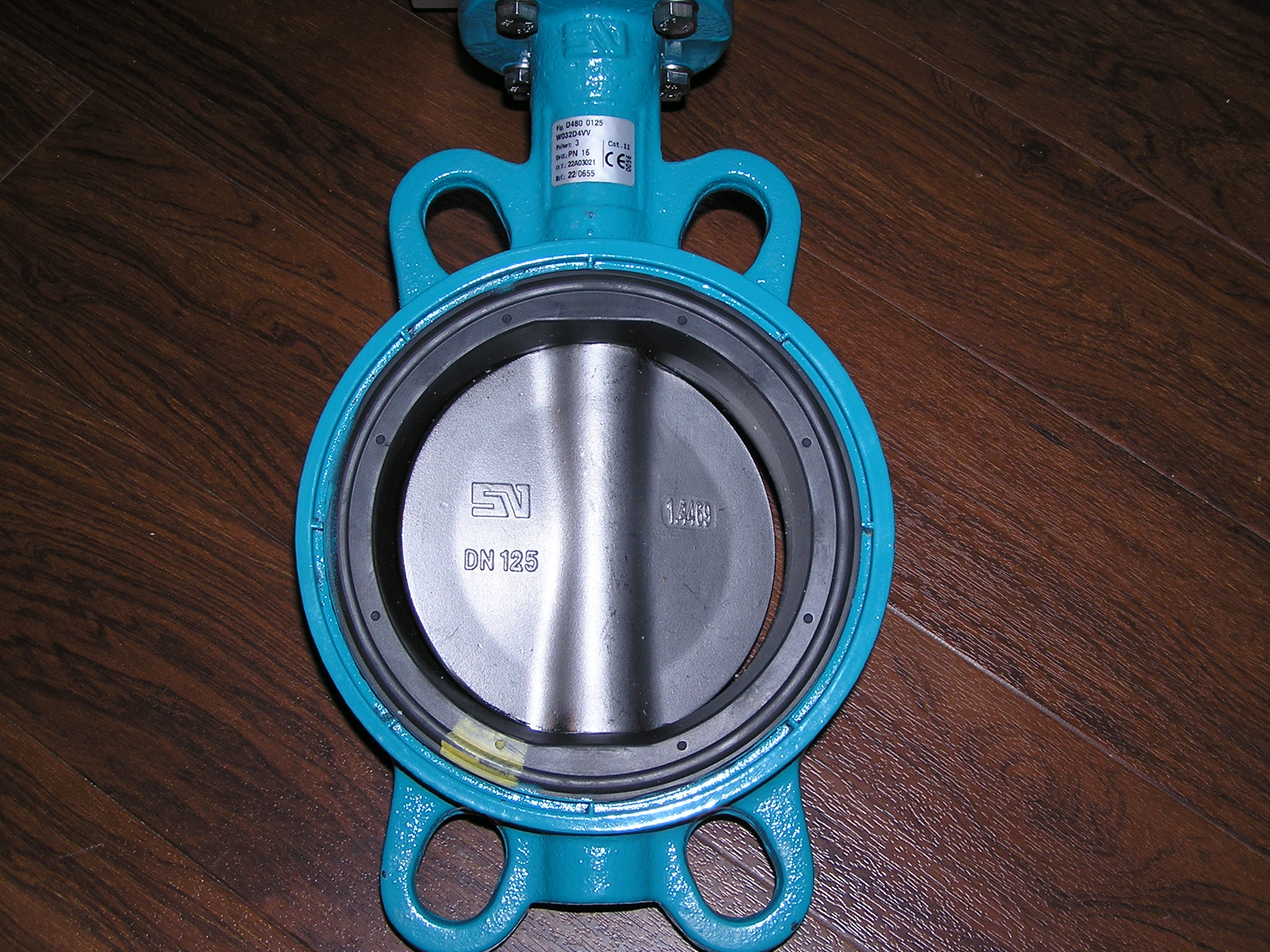

GEMÜ Victoria D481 Pneumatically operated butterfly valve

Type: Butterfly valve, pneumatically operated
DN: DN 125
Body configuration: Intermediate flange version (Wafer), length FTF EN 558 series 20
Operating pressure: 3 bar
Connection type: PN 16 / flange EN 1092, face-to-face dimension FTF EN 558 series 20
Housing material: EN-GJS-400-15 (GGG-40), epoxy coated 120 µm
Disc material: 1.4469, SUPERDUPLEX
Shaft material: Duplex 1.4462
Liner material: FKM
Liner fixing: Seat vulcanised into body
Control function: Double acting (DA)

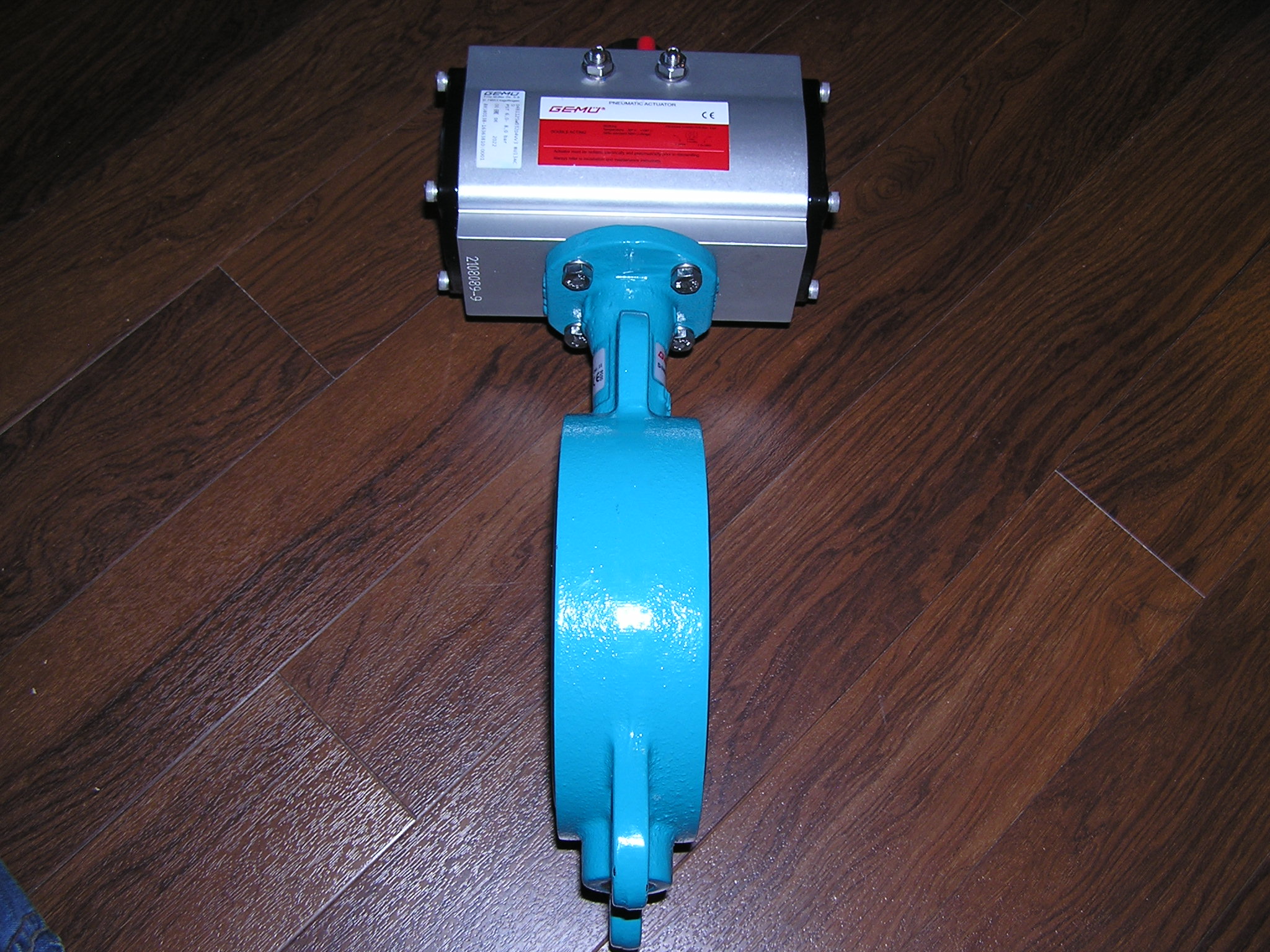

Actuator version: Actuator, pneumatic, double acting, clockwise rotation, ADA0130U F05/07S17S14
Operator particulars: Anodized aluminium

Order no.: 88580138

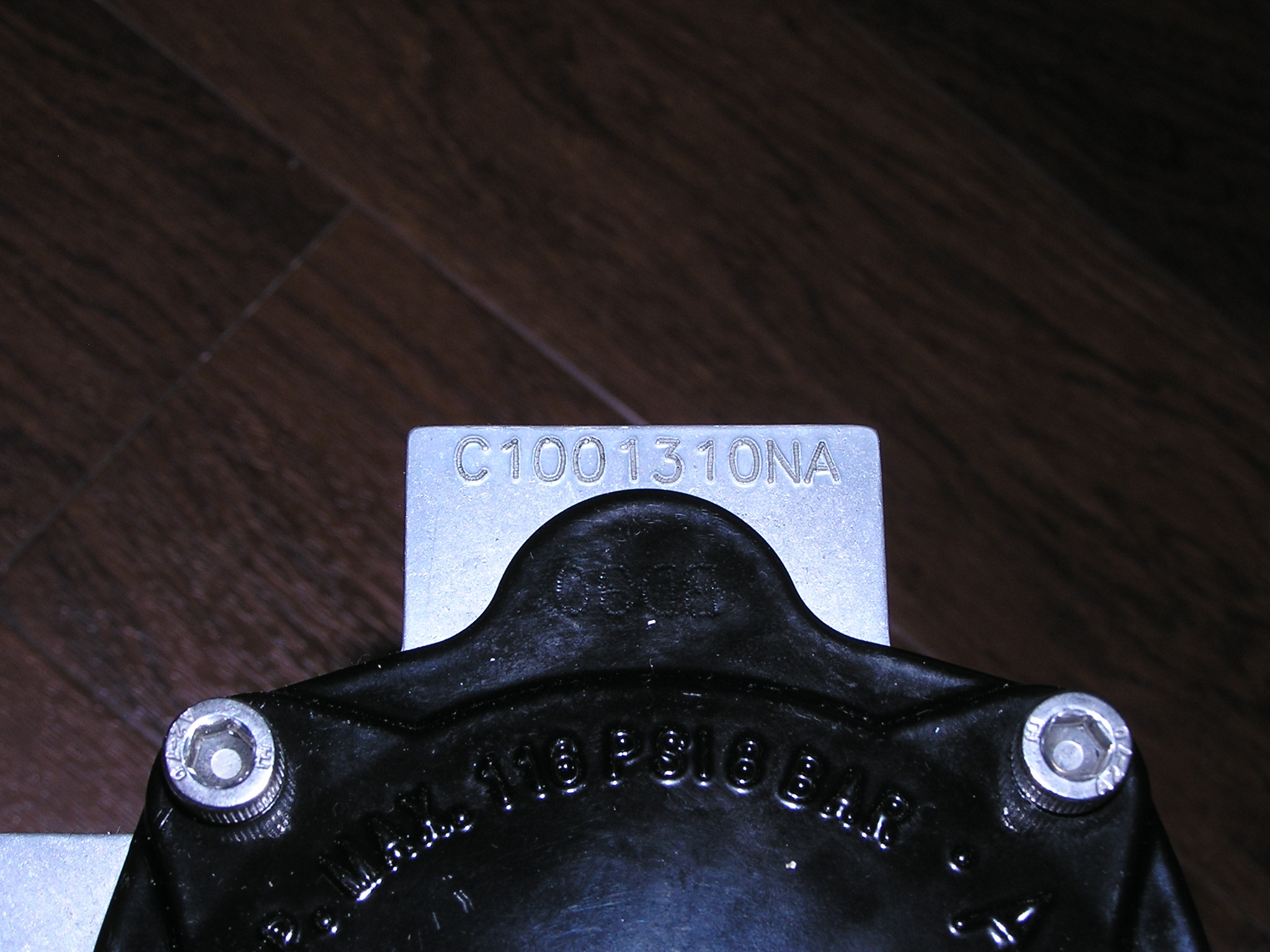

Actuator version: ADA0130 U F05F07YS17/S14A

Actuator order no.: 88389703

Unused without original box

Additional information

Weight	10 kg
Brand	GEMÜ
Onderdeelnummer fabrikant	88580138
Country/Region of Manufacture	Duitsland
MPN	88580138
MPN other	D481125W032D4VV3 BU13AC0
Type	Victoria D481 Pneumatically operated butterfly valve
Condition	Nieuw: Overige (zie details)
