Description

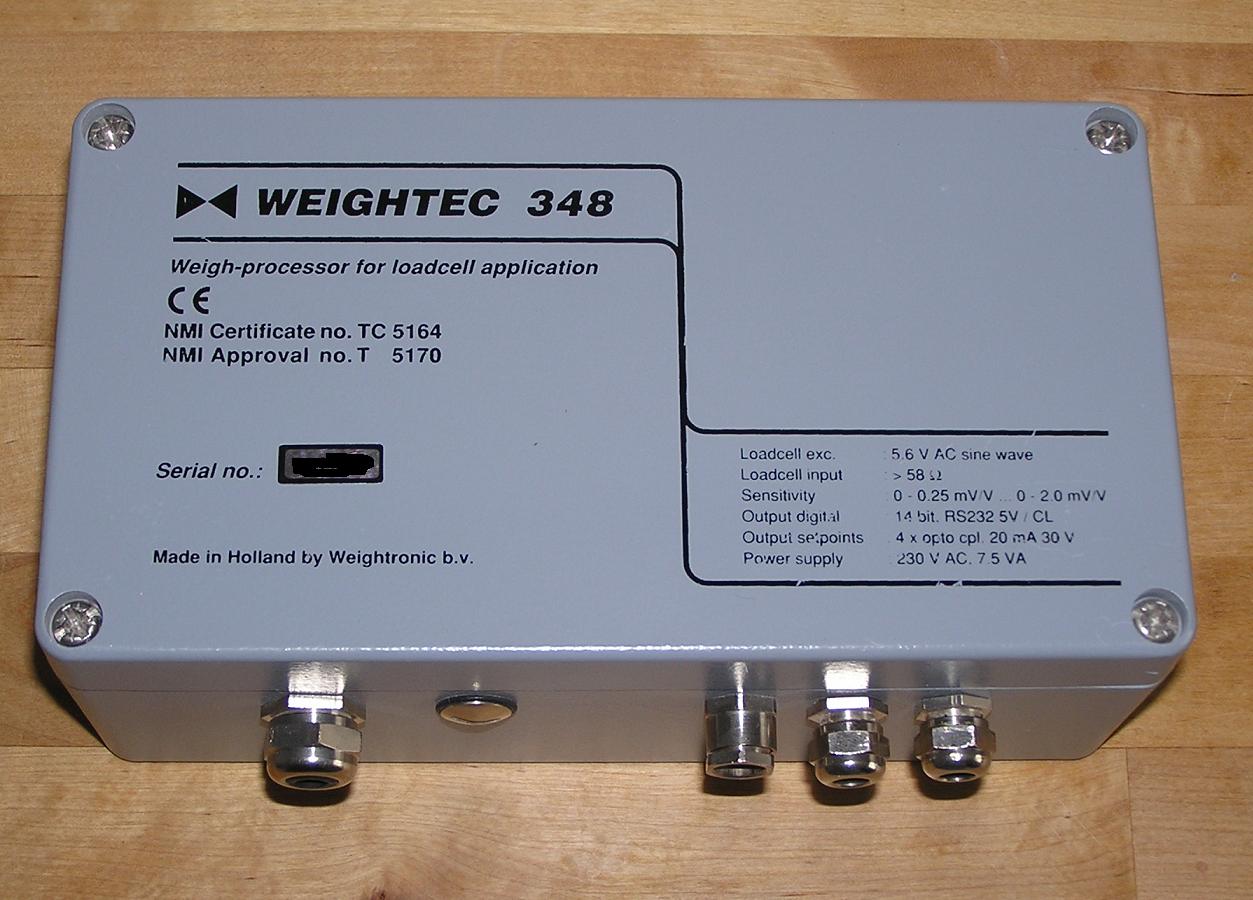

Weightec 348 High Resolution Weighing Processor for load cell
Company: Weegtechniek / Weightronic
Model no.: Weightec 348
Excellent condition, tested and working
Has been used in production for several years without problems and was decommissioned by me.

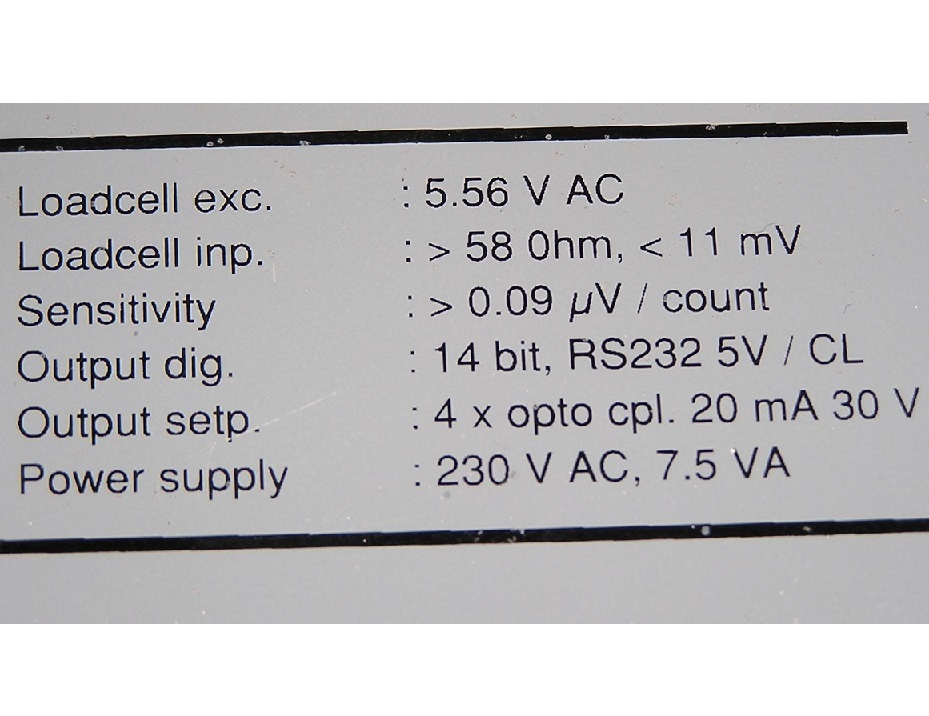

Specifications:
- Input: 0 . . 2 mV/V, LC Exc. 5-6 VAC sinus 216 Hz, >56 Ω, 1 mV/V deadweight offset adjustable
- Output: 15.000 counts over 0. . 0,25 mV/V to 0. . 2 mV/V adjustable, meas. frequency 432 Hz, 17 bit, full duplex RS 232 or CL (20mA), 4 opto’s / setpoints, external display, bus for 15 amplifiers

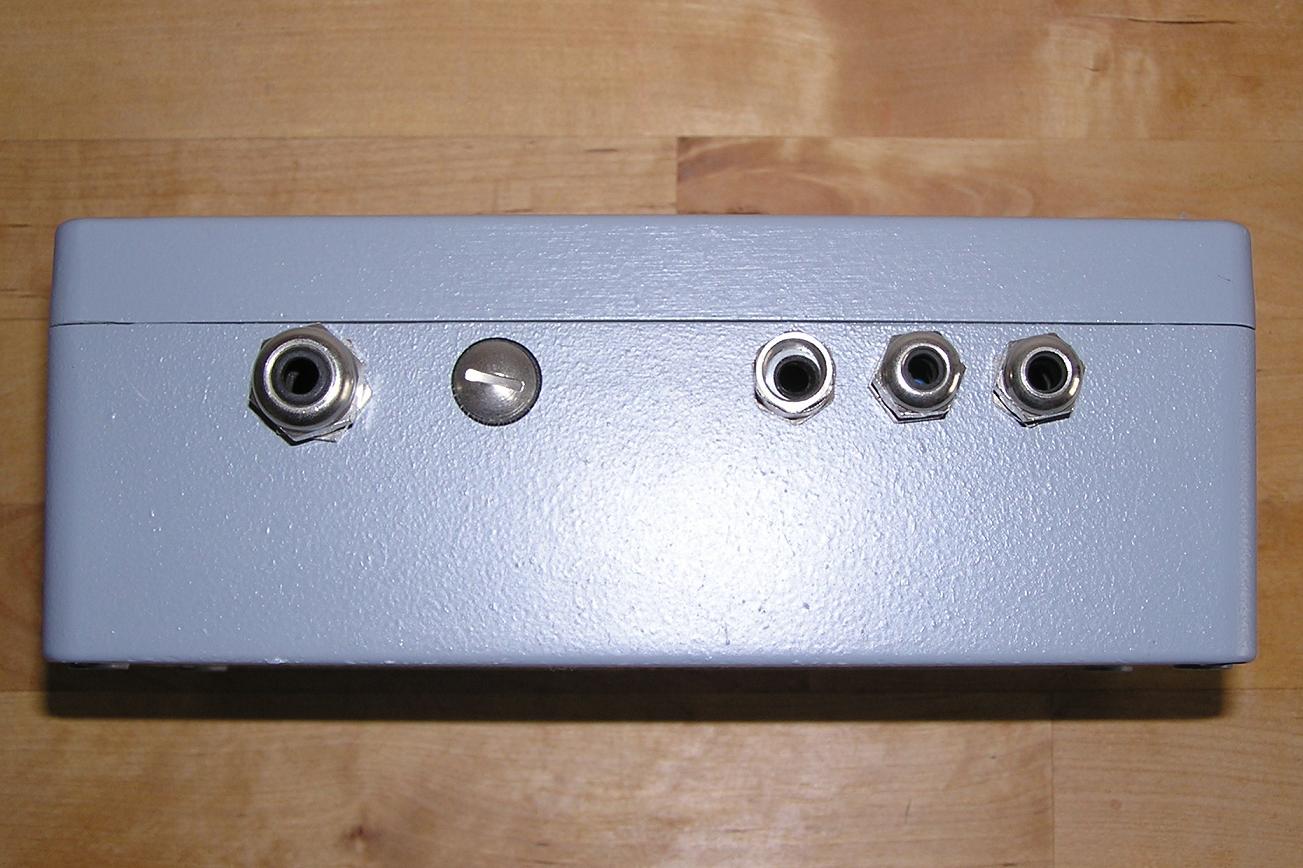

- Enclosure: diecast aluminum 22 x 12 x 9 cm, IP 65, integrated 2-line adjustment display, PG 7″ and 9″ cable glands
- Supply: 230 VAC – 15 + 10%, 40. .60 Hz , max 9VA
